String Heddle

A heddle is something in weaving that holds threads of the warp to make it faster to weave. Rather than picking over and under each warp thread with the weft, heddles can be arranged to lift (or lower) alternate warp threads so the weft yarn can pass through (the tunnel created is called a shed). Heddles come in many forms, but I learned how to do a continuous string heddle when I was reading about back strap looms. I decided to try one with my frame loom.

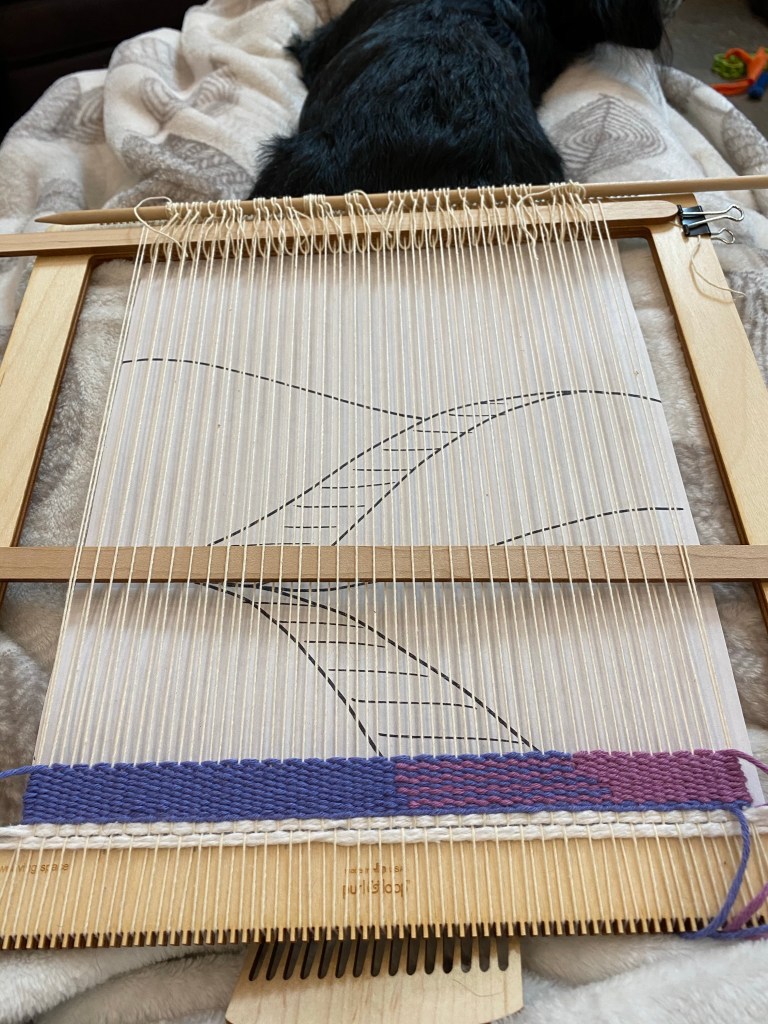

Frame loom with continuous string heddle at the top, and a cartoon (pattern) attached behind

I used the same thread as my warp (I’m still working away at the found ball in my inherited stash), and used a slip knot to start, then looped the thread around every other warp thread, securing each loop with two half hitches. I used one of my pick up sticks for the alternate threads. It took awhile to secure all the loops, but now that it is set up, it is much easier to switch sheds. Weavers call the drawing used as a guide a “cartoon”. My cartoon is helping guide my curve work.

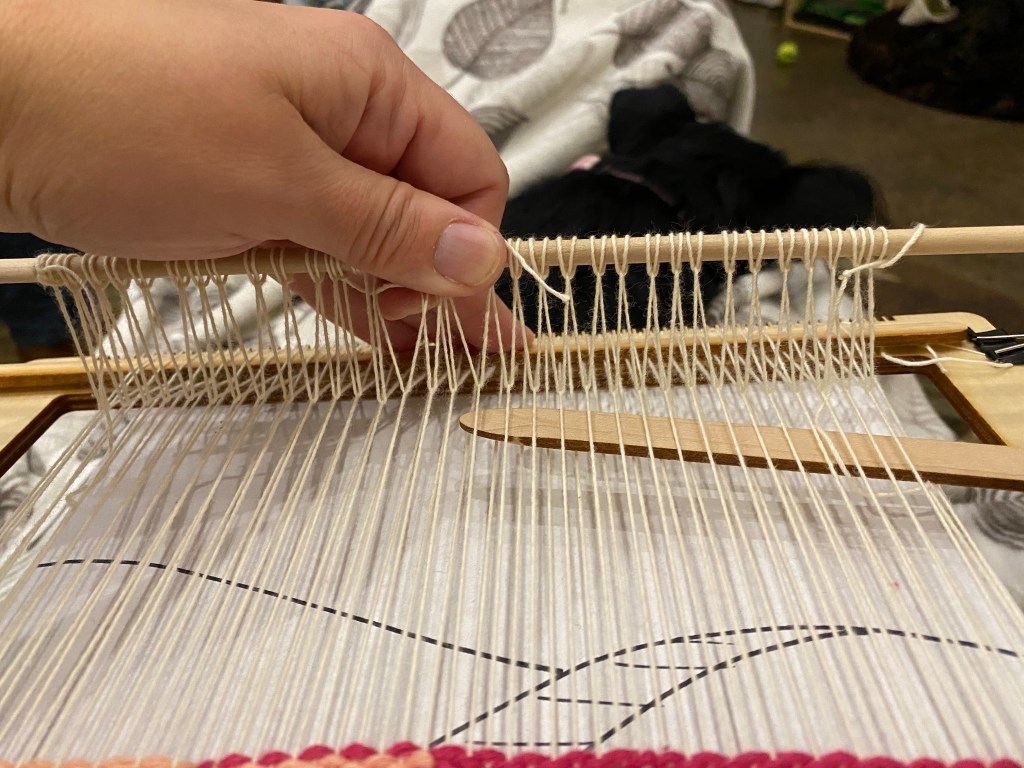

Opening a shed with a continuous string heddle, then using a pick up stick to hold the shed open

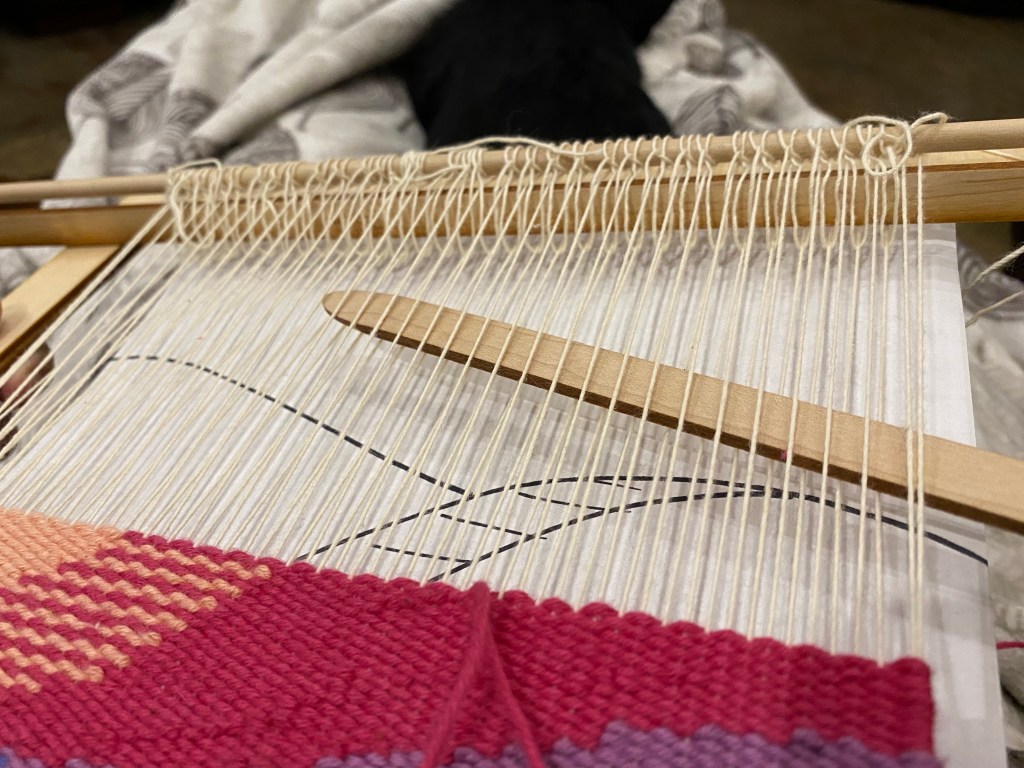

Shed kept open with a pick up stick to make space for the warp thread
Opposite warp threads lifted with a second pick up stick
